Introduction

Belvo's Pix Automático is a recurring payment method established by the Central Bank of Brazil that simplifies how recurring Pix transfers are initiated by allowing them to be processed automatically after a one-time authorization from the end-user (payer).

Once authorized, the merchant can initiate subsequent recurring payments without requiring individual approval for each transaction. These recurring payments can be configured for either fixed or variable amounts, depending on the specific business logic.

In this guide, you’ll learn:

1. The prerequisites you need to complete before doing anything else.
2. How to set up a Payment Authorization
3. How to request payment from your customers (Charges)

Prerequisites

Make sure you have completed all the steps in our dedicated prerequisites article before continuing this guide. The guide will take you through how to:

• Set up webhooks (required as our payment solutions utilize webhooks to inform you regarding the progress of your payments, any errors that occur, and when a payment is completed successfully).
• Create a benficiary bank accout (required for receiving payment funds).
• Set up a return (callback) URL (required as after your user authorizes their payment they need to be redirected to your application).

General flow overview

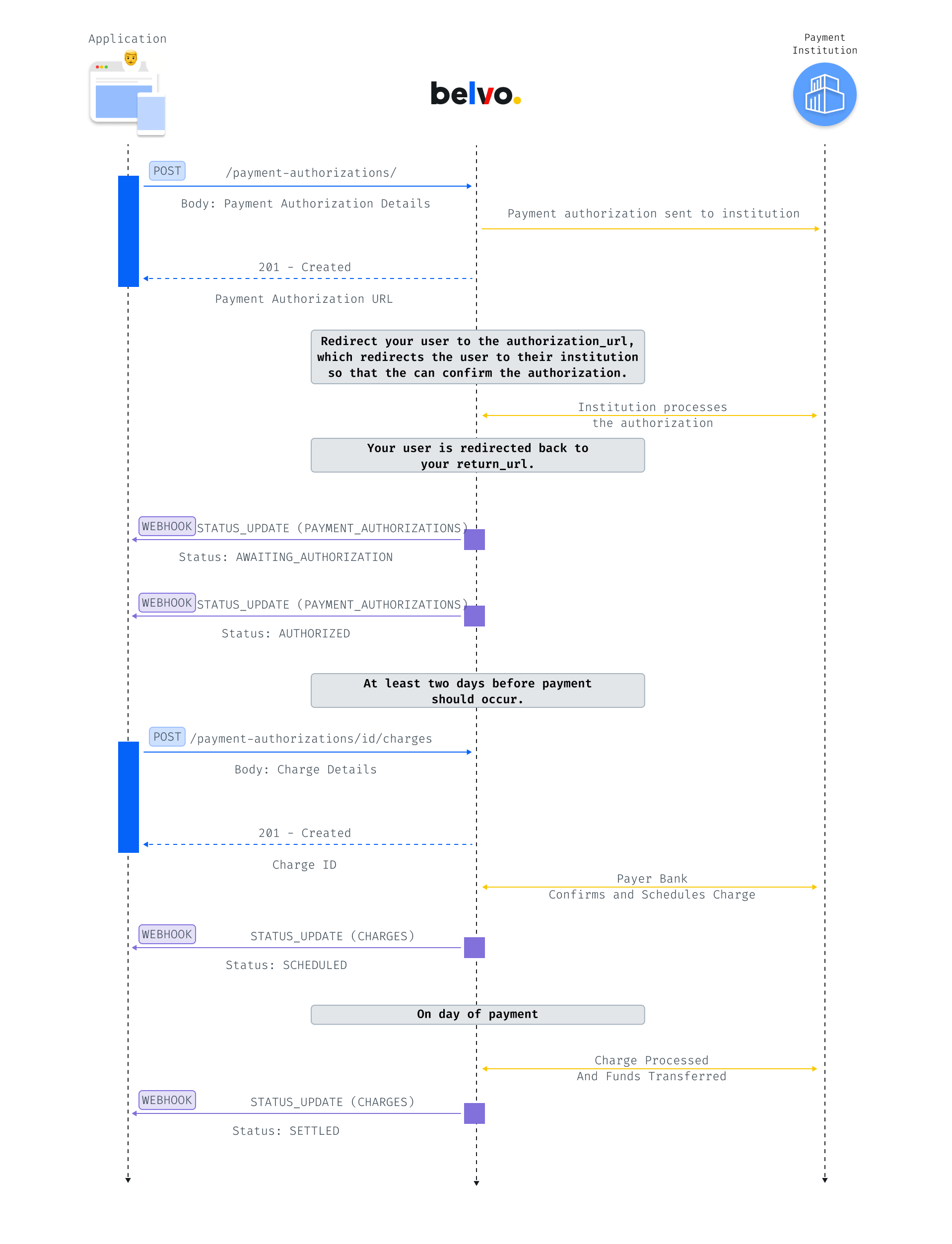

As you can see in the diagram below, the data flow for creating a payment using Pix Automatico involves:

1. Creating a Payment Authorization.
2. Redirecting your user to the authorization_url so that they can confirm that Payment Authorization. Once confirmed, they are redirect to the return_url you provided.
3. Waiting for a PAYMENT_AUTHORIZATION webhook with the status set to AUTHORIZED.
4. Requesting the Charge at least two days before the payment should occur.
5. On the day of the payment, waiting for a CHARGES webhook with the status set to SETTLED.

Creating a Payment Authorization

A Payment Authorization is the consent that your user gives you to charge (debit money from) their accounts. You need to perform one Payment Authorization per ‘contract’ (for example, if your company does both electricity and water but they are billed separately, then you will create two separate Payment Authorizations).

 POST /payment-authorizations/

{
  "payment_method": "PIX_OF_AUTOMATIC_FIXED",
  "description": "Internal description used by the merchant only",
  "external_id": "c169a8a9-e9f5-48db-9f4a-818caef9356b",
  "return_url": "https://merchant.com/return",
  "payer": {
    "customer": {
      "identifier": "customer_cpf",
      "name": "customer_full_name"
    },
    "institution": "institution-uuid",
    "representative_identifier": "12345678901122"
  },
  "beneficiary": {
    "type": "BANK_ACCOUNT",
    "target": "b6278377-f710-4d1a-a026-7bab757256d0"
  },
  "payment_method_configuration": {
    "amount": 10000.05,
    "statement_description": "Description to show on the bank statement",
    "frequency": "WEEKLY",
    "start_date": "2025-06-01",
    "end_date": null,
    "contract_id": "id-with-max-len-35",
    "retries": true
  }
}

On a successful API request, Belvo responds with a 201 - OK. You will need to redirect your user to the authorization_url that you receive in the response so that they can authorize the payments in their institution. Once they go through the authorization process in their institution’s application, they will then be redirected back to return_url you provided.

{
  "id": "9fc68b84-f2d6-4142-b2ad-9d2d1ad70432",
  "created_at": "2025-05-20T09:55:02Z",
  "updated_at": "2025-05-20T09:55:02Z",
  "status": "AWAITING_AUTHORIZATION",
  "status_reason_code": null,
  "status_reason_message": null,
  "status_updated_at": "2025-05-20T09:55:02Z",
  "authorization_url": "url_to_redirect_user",
  "authorized_at": "2025-05-20T09:55:02Z",
  "external_id": "c169a8a9-e9f5-48db-9f4a-818caef9356b",
  "description": "Internal description used by the merchant only",
  "return_url": "https://merchant.com/return",
  "payment_method": "PIX_OF_AUTOMATIC_FIXED",
  "payer": {
    "customer": "533e7a9b-e6c7-4bd4-be79-3a3c3bd78044",
    "institution": "770932b4-8f1f-4b0f-8470-1c605903fdb2",
    "representative_identifier": "12345678901122"
  },
  "beneficiary": {
    "type": "BANK_ACCOUNT",
    "target": "b6278377-f710-4d1a-a026-7bab757256d0"
  },
  "payment_method_configuration": {
    "amount": 10000.05,
    "statement_description": "Description to show on the bank statement",
    "frequency": "WEEKLY",
    "start_date": "2025-06-01",
    "end_date": null,
    "contract_id": "id-with-max-len-35",
    "retries": true
  }
}

Once the user confirms the authorization, you will need to listen for a a PAYMENT_AUTHORIZATION webhook with the status set to AUTHORIZED. When you receive this webhook, the authorization process is complete.

Charging Your Customer

Once you have a Payment Authorization with the status AUTHORIZED, for each payment you want to retrieve from your customer you need to create a Charge.

To request a Charge, you will need to make the following request:

POST /payment-authorizations/payment_authorization_id/charges/

{
  "amount": 10000.05,
  "date": "2025-06-01",
  "statement_description": "Description to show on the bank statement",
}

On a successful Charge request, you will receive this response:

{
  "id": "0d3ffb69-f83b-456e-ad8e-208d0998d71d",
  "created_at": "2022-02-09T08:45:50.406032Z",
  "status_updated_at": "2025-06-09T08:45:50.406032Z",
  "status": "PENDING",
  "status_reason_code": null,
  "status_reason_message": null,
  "amount": "100.12",
  "date": "2025-06-09",
  "end_to_end_id": "1234567890abcdef",
  "statement_description": "Super Shoe Store - Brown Sneakers",
  "external_id": "ext-1234567890",
  "beneficiary": "58524ccc-89ac-4ab6-b62b-c3da3f19a722",
  "payer": {
    "bank_account": {
      "institution": "f9f40aa0-a864-45d6-a5d4-43ce9d28dd0b",
      "code": "123345",
      "type": "CHECKINGS",
      "agency": "1234",
      "number": "123456789"
    }
  },
  "metadata": {
    "internal_reference_id": "GGq73487w2"
  }
}

On the day of the payment, you will need to listen for a CHARGES webhook with the status set to SETTLED , which will indicate that payment was completed.

Additional Resources

Changing the bank account for a individual Charge

There might be a situation where you need to request that the payment goes to a bank account other than the one you initially provided in the Payment Authorization. And with Pix Automatico, that’s possible!

However, the bank account you provide must be associated with the same CNPJ and Company Name as with the initial Payment Authorization. For example, if in the initial Bank account was registered to Frangos Enlatados with the CNPJ of 12345678901122, then the new bank account must be registered to the exact same name and CNPJ identifier. Otherwise, when you make the request, the Open Finance Network will throw an error.

To request a Charge with a different bank account, you will need to make the following request:

POST /payment-authorizations/payment_authorization_id/charges/

{
  "amount": 100.01,
  "date": "2025-05-15",
  "statement_description": "Monthly Gym - Premium Plan",
  "beneficiary": {
    "target": "046f9af7-1813-4830-b4e6-5231e8111ca1"
  }
}

Retrying a Charge

In the case that a Charge fails, you will receive a webhook on the day indicating which Charge failed. If the Payment Authorization allows for retries (retries: true), then you are able to retry the payment and attempt to debit the user’s account again.

Regarding retries, keep in mind the following:

• Per each payment cycle, you can retry the payment up to three times.
• You can schedule a retry for the day after the request. For example, if the original Charge fails on 01.06.2025, you can retry the Charge with the date set to 02.06.2025.
• Retried Charges are linked 1-to-1 with another Charge. See the Linked Charges section below for a detailed explanation.
• For weekly cycles, the latest you can do the initial retry is five days (exclusive) after the first failed Charge. For example, if the original date of the Charge was 01.06.2025, you have up to 06.06.2025 to retry the payment.
• For all other cycles, the latest you can do the initial retry is seven days (exclusive) after the first failed Charge. For example, if the original date of the Charge was 01.07.2025, you have up to 08.07.2025 to retry the payment.

To retry a Charge, you will need to make the following request:

 POST /payments/br/payment-authorizations/payment_authorization_id/charges/charge_id/

{
  "date": "2025-06-30" // The date you want to retry the Charge on, in YYYY-MM-DD format. Must be at least one day in the future.
}

On a successful retry, you will receive a new Charge ID (and object). Please see the Linked Charges section below for a detailed explanation.

Linked Charges

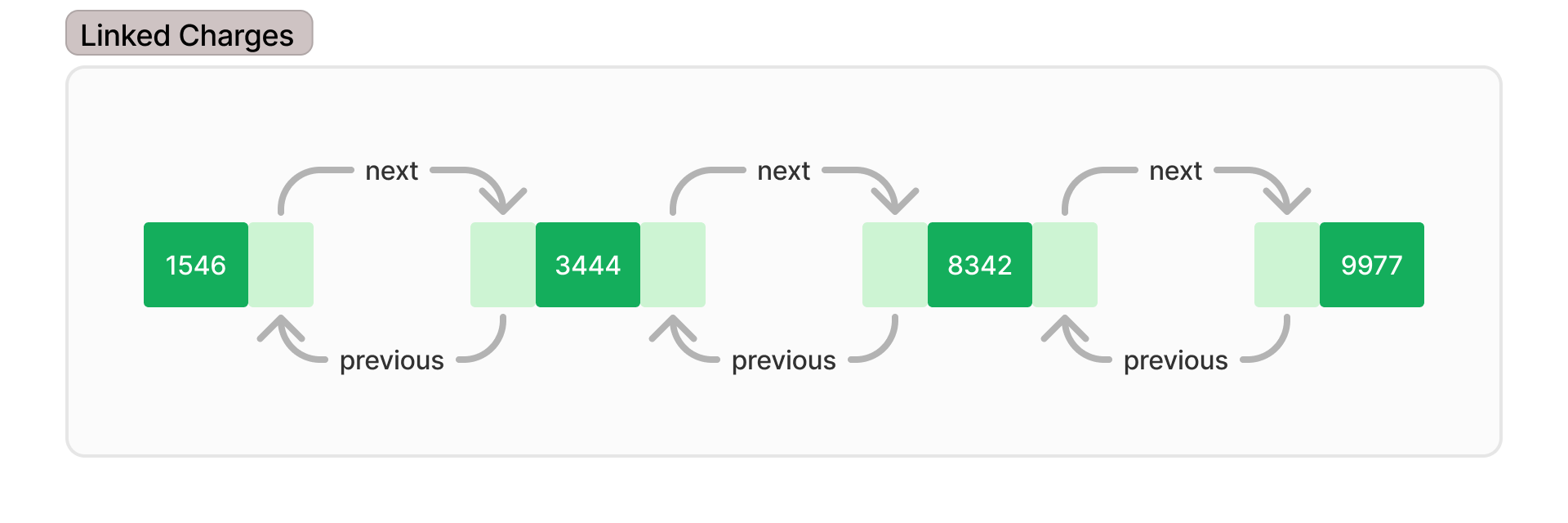

Belvo uses a doubly linked list structure to represent the lifecycle of a Charge and its retries, allowing you to track all the individual attempts associated with a Charge. Each time a Charge is retried, a new Charge is generated and links to the previous Charge. You can navigate through these Charges using the previous and next fields. In the example below, the Charge has been retried three times:

1. The original Charge (1546) failed. The previous parameter is set to null (indicating it is the first Charge). The next parameter is set to 3444.
2. The first retry (3444) failed. The previous parameter is set to 1546 . The next parameter is set to 8342.
3. The second retry (8342) failed. The previous parameter is set to 3444 . The next parameter is set to 9977.
4. The third retry (9977) failed. The previous parameter is set to 8342 . The next parameter is set to null (indicated it is the last retry and no further retries where made).

Cancelling an individual Charge

To cancel an individual Charge, you need to send through the following request:

 POST /payments/br/payment-authorizations/payment_authorization_id/charges/charge_id/cancel/

If successful, Belvo responds with a 204 - No Content. You will receive a webhook notification confirming the cancellation.

Cancelling a Payment Authorization

To cancel a Payment Authorization, you need to send through the following request by 22:00 (Brasilia Time):

 POST /payments/br/payment-authorizations/payment_authorization_id/cancel/

If successful, Belvo responds with a 204 - No Content. You will receive a webhook notification confirming the cancellation.
